Description

 ?? Technique Parameter                           ?? Operating Figure

Description

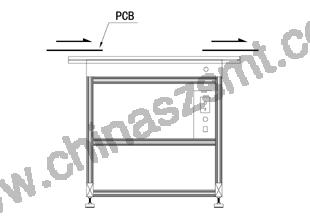

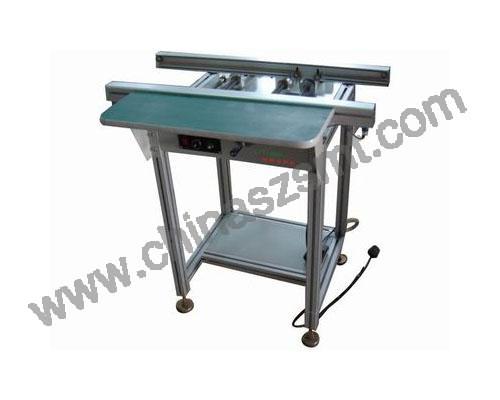

 This unit is used as a visual inspection station for operators between SMD Machines or board handing unit
 Conveyor Speed
 0.5-20m / min or specify
 Power Source
 100-230VAC(specify)??1ph
 Power Consumption
 100VA max
 Conveyor Height
 910±20mm (or specify)
 Conveyor Direction
 L→R / R→L(Option)

?? Specification Parameter (Unit??mm)

Model
MTT-CV0635
MTT-CV0646
MTT-CV1035
MTT-CV1046
Effective PCB Size
(L×W)??(L×W)
(50x50)??(500x350)
(50x50)??(500x460)
(50x50)??(650x350)
(50x50)??(650x460)
Dimension
(L×W×H)
600×700×910
600×810×910
1000×700×910
1000×810×910
Weight
Approx.50kg
Approx.55kg
Approx.75kg
Approx.85kg
