Description


?? SMEMA compatible
                       iendly membrane control panel

  ?? Technique Parameter                           ?? Operating Figure

 Description

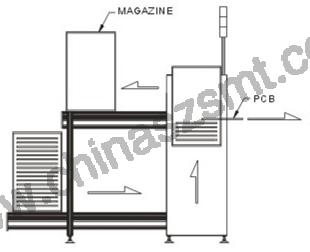

 This unit is used for loading of PCBs
 Time Feed PCB
  seconds 6 Approx
 Magazine Change Over Time
 Approx.30 seconds
 Power Source & Consumption
 100-230VAC(specify)??1ph, 300VA max
 Air Pressure & Consumption
 4-6 bar, 10 Ltr/min max
 Conveyor Height
 910±20mm (or specify)
 Conveyor Direction
 L→R / R→L(Option)
 PCB Thickness
 0.4 mm min
 No. of Magazine
 Upper Conveyor: 1magazine  Lower Conveyor: 2magazine
 Indexing Pitch
 1-4 (10mm pitch)

?? Specification Parameter (Unit??mm)

Model
MTT-SB-S5
MTT-SB-M5
MTT-SB-L5
MTT-SB-XL5
Effective PCB Size
(L×W)??(L×W)
 (50x50)??(350x250)
 (50x50)??(455x330)
 (50x50)??(530x390)
(50x50)??(530x460)
Dimension
(L×W×H)
1400×800×1200
1650×880×1200
1800×940×1200
1800×1010×1200
Size Of Magazine
(L×W×H)
 355×320×563
 460×400×563
 535×460×570
535×530×570
Weight
Approx.140kg
Approx.180kg
Approx.220kg
Approx.260kg
?? Top & b?? Features
?? Strong, firm and stable design
?? User friendly membrane control panel
?? Top & bottom pneumatic clamps to secure magazine rack
?? No PCB breakage guaranty during loading & unloading
?? SMEMA compatible
                       ottom pneumatic clamps to secure magazine rack
?? No PCB breakage guaranty during loading & unloading
?? SMEMA compatible
                        friendly membrane control panel
?? Top & bottom pneumatic clamps to secure magazine rack
?? No PCB breakage guaranty during loading & unloading
?? SMEMA compatible
